BULLET TRAIN — COMPLETE DETAILED EXPLANATION

1. What is a Bullet Train?
A bullet train is a very high-speed passenger train designed to run typically above 250 km/h (155 mph) on specially built tracks called High-Speed Rail (HSR) lines.
The name bullet train came from Japan’s first high-speed train (1964) because its nose looked like a bullet.
Official technical term:
High Speed Rail Train (HSR)
Countries using bullet trains:
Japan (Shinkansen)
China (CRH & Fuxing)
France (TGV)
Germany (ICE)
Spain (AVE)
Italy (Frecciarossa)
South Korea (KTX)
India (Mumbai–Ahmedabad under construction)

2. Basic Principle — Why Bullet Trains Can Go So Fast
Normal trains cannot go very fast because of:
Wheel friction
Air resistance
Track vibration
Curve limitations
Safety braking distance
Bullet trains solve these using engineering optimization:
Problem
Solution in Bullet Train
Track shaking
Dedicated smooth track
Air resistance
Aerodynamic nose
Wheel friction
Special steel + suspension
Curves
Large radius curves
Safety
Automatic computer control
Power
Continuous electric traction

3. Speed of Bullet Trains
Commercial Operating Speed
Typical: 250 – 320 km/h
China Fuxing: 350 km/h
Japan Shinkansen: 320 km/h
Maximum Tested Speed
Wheel-on-rail record: 574.8 km/h (France TGV)
Maglev record: 603 km/h (Japan SCMaglev)

4. Track System (Most Important Component)
Normal trains run on mixed tracks with goods trains.
Bullet trains require:
Dedicated High Speed Corridor
Track Design Features
1. Straight Alignment
Curves are very wide:
Normal train curve radius: 500–1000 m
Bullet train curve radius: 4000–7000 m
Reason: High speed trains cannot turn sharply due to centrifugal force.
2. Slab Track Instead of Gravel
Normal trains use stones (ballast). Bullet trains use concrete slab.
Why slab track?
No vibration
Perfect stability
Low maintenance
Better for 300+ km/h
3. Elevated or Fenced
To avoid:
Animals
Humans
Vehicles
This prevents accidents.

5. Electric Power System
Bullet trains do NOT use diesel. They run fully on high-voltage electricity.
Typical supply:
25 kV AC overhead catenary
Electricity flow:
Power station → transmission grid → substation → overhead wire → pantograph → train motors
Pantograph (Power Collector)
The arm on top of train touching wire.
Functions:
Collect electricity
Maintain constant contact at 300 km/h
Aerodynamic design to reduce noise

6. Propulsion Mechanism (How the Train Moves)
Bullet trains use:
Distributed Electric Multiple Unit (EMU)
Instead of one engine pulling coaches, many coaches have motors.
Why EMU?
Faster acceleration
Better braking
Even weight distribution
Energy efficiency
Motor Type
Modern bullet trains use:
3-phase AC Induction Motor / Permanent Magnet Synchronous Motor
Working principle: Electric current → magnetic field → rotor rotation → wheels rotate

7. Aerodynamics (The Biggest Speed Limiter)
At 300 km/h:
80% of resistance is AIR
So design is critical.
Nose Design
The long nose reduces:
Air drag
Tunnel boom sound
Some noses are 15 meters long!
Tunnel Boom Problem
When fast train enters tunnel: Air compresses → explosion sound
Solution:
Long nose cone
Pressure sealed coaches
Smooth Body Design
No gaps
Covered bogies
Flush windows

8. Braking System
Stopping a 400-ton train at 300 km/h is extremely difficult.
Bullet trains use multiple braking systems simultaneously.
Brake Type
Function
Regenerative brake
Motor becomes generator
Disc brake
Mechanical stopping
Eddy current brake
Magnetic resistance
Aerodynamic brake
Air spoilers (some models)
Regenerative Braking
When slowing down: Motor → generates electricity → sent back to grid
Energy saving: up to 30%

9. Safety System (Zero Accident Philosophy)
Japan Shinkansen has 0 passenger deaths since 1964 due to derailment or collision
Because trains are controlled by computers — not drivers alone.
Automatic Train Control (ATC)
Driver does NOT control speed freely.
Computer:
Calculates safe distance
Controls acceleration
Applies brake automatically
Earthquake Detection (Japan)
Sensors detect seismic waves → power cuts → train stops within seconds.
No Level Crossings
No road crossings. Only bridges/tunnels.

10. Suspension System (Ride Comfort)
At 300 km/h even small vibration is dangerous.
Bullet trains use:
Active suspension system
Sensors detect track irregularities → adjust wheel pressure in milliseconds.
Result: Feels like airplane smoothness.

11. Passenger Comfort Technology
Features:
Pressure sealed cabins (no ear pain in tunnels)
Rotating seats
Noise insulation
Automatic doors
Vibration damping floors
Interior noise: ~65 dB (like office room)

12. Signaling System
Normal trains use:
Signal lights
Bullet trains use:
Cab Signaling
Driver sees speed instructions inside cockpit display.
Because at 300 km/h, human cannot see track signals.

13. Maglev vs Wheel Bullet Train
Conventional Bullet Train
Steel wheel on rail
Speed: up to 350 km/h
Maglev (Magnetic Levitation)
Floats above track
No contact → no friction
Speed: 500+ km/h
Maglev Working Principle
Uses electromagnets:
Magnetic repulsion lifts train Linear motor pushes forward
Track acts like motor stator.
No wheels.
Advantages:
Silent
Ultra fast
No wear & tear
Disadvantages:
Extremely expensive
Special track only

14. Energy Consumption
Per passenger energy usage:
Transport
Energy
Airplane
Very High
Car
High
Bus
Medium
Bullet train
Low
Bullet trains are among the most energy-efficient transport systems.

15. Why Bullet Trains Are Expensive
Cost factors:
Land acquisition
Elevated bridges
Tunnels
Slab track
Safety systems
Electrification
Average cost:
₹150–300 crore per km (India estimate)

16. Future Technology
Upcoming developments:
Hydrogen Powered High Speed Trains
Zero carbon emissions
Vacuum Tube Trains (Hyperloop concept)
Speed: 1000+ km/h
AI Autonomous Driving
No driver needed

17. India Bullet Train Project
Mumbai – Ahmedabad corridor
Speed: 320 km/h

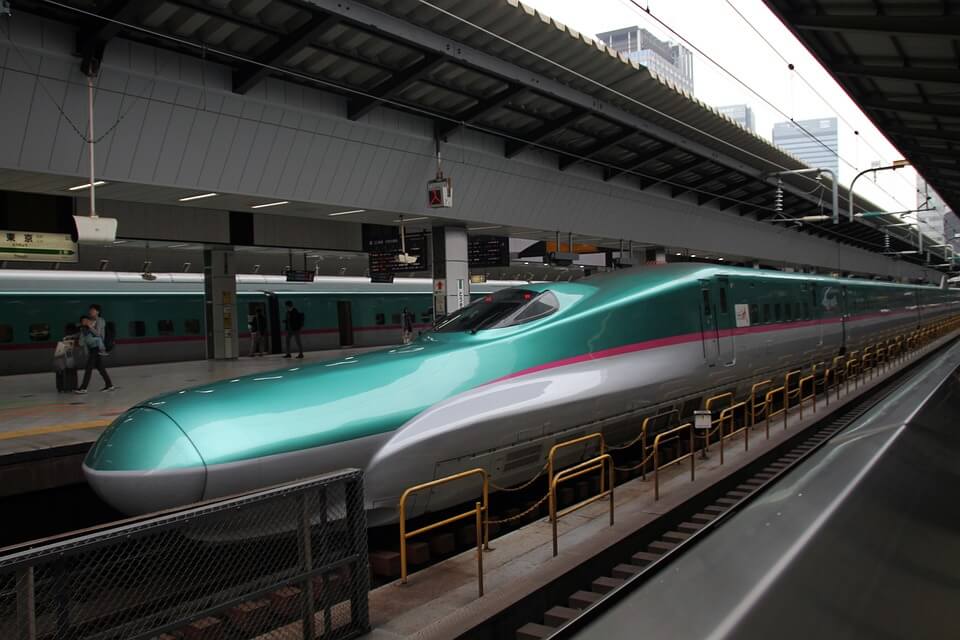

Technology: Japanese Shinkansen E5
Travel time: 7 hours → 2 hours

18. Advantages of Bullet Trains
Very fast
Eco-friendly
Safe
High capacity
Weather independent
Reduces air traffic

19. Limitations
Very high initial cost
Needs straight corridor
Not suitable for low population routes

20. Simple Working Summary
Electricity enters from overhead wire
Pantograph collects power
Converter supplies motors
Motors rotate wheels
Computer controls speed
Aerodynamic body cuts air
Regenerative braking recovers energy
Automatic systems ensure safety
Conclusion
Bullet trains are not just fast trains — they are a complete integrated engineering ecosystem combining:
Mechanical engineering
Electrical engineering
Civil engineering
Aerodynamics
Computer automation
Safety science
They represent the future of sustainable long-distance transport between cities 200–800 km apart — faster than cars, cheaper than flights, and greener than both.
